February 20, 2026

Wash Bay Solutions provides industrial pressure washers and custom locomotive wash bay systems engineered specifically for the demanding needs of the railroad and locomotive industry. From Class I railroads to short line operators and transit authorities, our equipment helps rail facilities clean locomotives efficiently while meeting strict environmental and water-use regulations.

American rail companies continue to lead the transportation sector in sustainability, water conservation, and environmental compliance. Wash Bay Solutions supports these initiatives with heavy-duty cleaning systems and water recycling technology designed to reduce operating costs, minimize downtime, and extend equipment life.

Industrial Pressure Washers for Locomotive Cleaning

Locomotive cleaning requires far more power and durability than standard industrial washing. Wash Bay Solutions offers electric and gas-fired hot water pressure washers designed for continuous use in rail yards and maintenance facilities.

Our locomotive pressure washers feature an inline flow regulator that allows operators to adjust both flow rate and pressure directly at the wand. This flexibility makes it easy to clean everything from engine housings and undercarriages to railcars and support equipment—without switching machines.

Key benefits of our locomotive pressure washers include:

High-pressure, high-flow performance for faster cleaning
15–20% improved washing efficiency compared to conventional systems
Reduced water and energy consumption
Heavy-duty components designed for long service life
Safe, operator-friendly controls for daily rail yard use

These systems are ideal for rail operators seeking a reliable, cost-effective locomotive pressure washing solution that delivers consistent results shift after shift.

Custom Locomotive Wash Bay & Wash Arch Systems

For higher-volume operations, Wash Bay Solutions designs and builds custom locomotive wash bays and automated wash arch systems tailored to your facility layout and operational requirements.

Our locomotive wash bay systems can be installed in new construction or retrofitted into existing wash facilities. Each system is engineered around the size, clearance, and throughput needs of your locomotive fleet.

Available features include:

Engineered 360-degree coverage for wetting, soaping, and rinsing
Stainless steel wash arches for corrosion resistance
Automated controls for safety and repeatable wash quality
Configurations that support both manual and automated washing
Designs compliant with modern environmental and safety standards

Whether you operate a single service bay or a large rail yard, our wash bay solutions are built to maximize uptime and cleaning consistency.

Water Recycling & Environmental Systems for Locomotive Wash Bays

Water conservation and environmental compliance are critical concerns for locomotive facilities. Wash Bay Solutions integrates closed-loop water reclaim and recycling systems into both pressure washer and wash bay installations.

These systems capture, treat, store, and reuse wash water—dramatically reducing fresh water consumption while supporting environmental goals.

Our locomotive wash water systems can include:

Closed-loop water recycling for continuous reuse
Sewer discharge treatment systems where permitted
Ozone disinfection for improved water quality
Automated filtration with PLC controls
Rainwater management and fresh water makeup systems

The result is a complete locomotive wash solution that lowers operating costs while meeting regulatory requirements at the local, state, and federal levels.

Why Locomotive Operators Choose Wash Bay Solutions

Rail operators choose Wash Bay Solutions because we deliver turnkey locomotive washing systems—from powerful pressure washers to fully integrated wash bays and water recycling technology. Our systems are designed with real-world rail operations in mind, helping facilities:

Clean locomotives faster and more effectively
Reduce water and energy usage
Extend equipment life
Maintain environmental compliance
Scale systems as fleets and operations grow

Frequently Asked Questions (FAQs)

What pressure washer is best for cleaning locomotives?
Locomotive cleaning requires industrial-grade, hot water pressure washers with high flow and adjustable pressure. Wash Bay Solutions designs pressure washers specifically for rail applications, providing the power and durability needed for daily locomotive washing.

Can pressure washers be used instead of a full locomotive wash bay?
Yes. Many rail facilities use heavy-duty pressure washers for flexible, manual cleaning. High-volume operations often combine pressure washers with automated wash bays for maximum efficiency.

Do locomotive wash bays require water recycling systems?
While not always required, water recycling systems are strongly recommended. They significantly reduce water usage, lower operating costs, and help rail facilities comply with environmental regulations.

Can Wash Bay Solutions retrofit existing locomotive wash facilities?
Yes. We design retrofit solutions for existing wash bays, upgrading them with modern wash arches, pressure washing systems, and water reclaim technology.

Are your systems compliant with environmental regulations?
Wash Bay Solutions designs all locomotive wash systems with environmental compliance in mind, including water treatment, discharge options, and conservation technologies.

by Admin

April 18, 2024

Washing Haul Trucks Mining Industry

Mining equipment washing applications are challenging for several reasons. Aside from the fact that they are very large, mining trucks are difficult to clean. So, for generations, people just used fire hoses to clean the trucks. This meant pumping hundreds of gallons of water per minute to knock off as much dirt and rocks as possible.

But we are changing that with new highly efficient systems that use less water. This is very important since most mine locations are often remote with no sewer connections and are ALSO adjacent to environmentally sensitive areas.

MINING TRUCK WASHING SOLUTIONS:

With our systems, washing is done with a limited amount of water. Typically, we recommend three separate systems: a cold water monitor, a cold water demucker and a heated electric pressure washer.

Water Cannons / Monitors – Cold water monitors placed on rails or stands on the mezzanines initially wash the side and top of the trucks. The monitors will have 360° horizontal rotation and 135° vertical rotation, -45° to +90°. The monitors have variable flow nozzles that typically provide 100 GPM of water @ 100 PSI (378.5 LPM @ 689kPa). Typically, only one monitor is used at a time.

Demuckers – Demucking station reels are placed on the wash bay floor on either side of the wash bay. The hand-held demuckers can provide 20 GPM of water @ 1000 PSI (75.7 LPM @ 6895 kPa). By moving around the truck, operators can remove any dirt and solids missed by the monitors. Typically, one or two demuckers are used at a time.

Both the monitors and demuckers have remote start/stop control panels to permit an operator to control the pump operation. These NEMA-4X control panels include a momentary start switch and emergency stop switch; the start switch initiates a timer in the main control panel to run the pump for a pre-set time period to prevent unintended continuous operation.

Heated Pressure Washers – A heated pressure washer is used for a final wash, degreasing wash or de-icing. Pressure washer reels are be placed on the wash bay floor on either side of the wash bay. Typically, the pressure washer provide 5.4 GPM of water @3000 PSI (20.4 LPM @ 20684 kPa) with 72KW of heat. These systems use a trigger gun activated start/stop with time-delayed shut down.

pump washing operating room

water cannon pressure washing haul trucks

haul truck pressure washing

MINING TRUCK WATER TREATMENT SYSTEMS

The first step in water treatment is solids handling so we help design the best solids settling basin for your particular facility. Water treatment is typically done with a CT-Series wash water reclaim system with closed loop recycling system, capable of processing about 100 GPM (378.5 LPM). The system includes a clarifier oil water separator, fully automated solids filtration, activated carbon (GAC) filtration, an ozone generator, and a polishing filter to treat the water and prevent odors.

The system is designed to be completely closed-loop with no external discharge. It constantly re-circulates water from the raw water tank through the media filter, ozone injector and to the clean water tank. The process generally flows as follows:

The water from the wash pad floor initially flows into a two compartment solids collection sump which will be cleaned out periodically. From the sump, a positive displacement pump will pump the water to a clarifier oil water separator which removes suspended solids, oils and greases.
From the clarifier separator, water is pumped to a tank and then pumped to the recycle section of the CT filtration system where the water is filtered through a sand media filter, ozonated to reduce odor, and then directed to a second tank. Water is constantly circulated from Tank 1 through the CT Filtration system, and then to Tank 2. The cold water monitor system and demuckers are fed from Tank 2.
In the secondary filtration section of the CT system, the fluid is then routed through tertiary filtration that includes a carbon bed to remove emulsified oils and soaps and a final filter to remove solids down to 20 microns. When the pressure washer requires water, the pump will provide cleansed, treated water for usage.
An automatic backwash in the CT system occurs daily to prevent the sand and carbon filters from plugging with fines.

All equipment can be installed in a complete 40’ long transportable equipment room (TER-40HC). This will save on building and installation costs, provide protection from the weather and allow you to move the equipment to a different facility if the need arises.

washing control room

by Admin

April 22, 2020

Cleaning and effective disinfecting are critical elements to maintaining a healthy farm. It is not possible to completely sterilize every surface but it is important to do as much as possible to ensure that disease transmission is not likely to occur.

According to most veterinarians, the best practices for cleaning and disinfecting animal farms generally consists of the following six steps:

Pre-clean – Pre-clean by removing excess organic material by scraping, shoveling, and sweeping. You can also pre-soak to soften dried waste and then pre-rinse. Soaking normally cuts down on the washing time.
Clean – Do your main cleaning with an appropriately-sized pressure washing system and detergent. Hot and cold water can be used. Although it will speed up cleaning, hot water may cause steam and visibility problems in the winter. Pressure washers come in range of flow rates and pressure ratings so choose one that fits your operation and does not cause harm to the staff or facilities. Finally, choose a safe, effective cleaning solution to maximize your cleaning process. It will help break down and remove organics and grease better than plain water.
Rinse – After washing, rinse all surfaces very well to remove loose waste, grease and detergent.
Disinfect – Disinfection is the next critical step in the cleaning process to kill the bacteria. The Environmental Protection Agency (EPA) maintains an extensive list of approved disinfectants. Numerous industry and university sources can be utilized to help you choose the best one to fit your target pathogen. Most disinfectants are designed to be applied as foam. Foamers are especially effective with disinfectants since they increase the surface dwell time and assure complete coverage since they show exactly where the disinfectant has been applied.
Final Rinse – A final rinse with the pressure washer is required to remove all of the disinfectant.
Drying – Sufficient drying time is required to remove all moisture from the building and surfaces. Eliminating residual water can greatly decrease the survival rate of viruses and bacteria. If available, heaters can be used to evaporate as much water as possible before moving livestock back into the area. Although timing and space is often limited, it is recommended that the rooms be completely dried 2-3 times per year before moving the animals back to the rooms. This extra time will help dramatically reduce contamination.

We can work with your staff and custom-design a complete washing and water treatment system based on your needs.

For washing, rinsing and disinfection, we offer a range of pumping and pressure washing systems featuring manual, automated and Variable Frequency Drive controls. A Variable Frequency Drive (VFD) system is one of the most cost effective units to run and maintain and allows multiple users at the same time. Critical disinfection foaming and sanitizing systems can also be added to the washing/rinsing systems.

We also can help you treat the wash water so that it can be properly discharged. If the washing process produces a lot of solids, we have a range of solutions to first separate the solids from the wash water.

We provide the following equipment:

Sanitizers and Foaming Systems
Disinfection Fogging Systems
VFD Controlled wash systems
Electric Hot Water Pressure Washing Systems
Cold Water Stationary Pressure Washing Systems
Debris & solids baskets and screens
Oil Water Separators
Multi-media and polishing filtration
Piping design assistance
Tanks and control systems

If you are in the livestock industry and need a washing and water treatment solution, give us a call!

by Admin

April 20, 2020

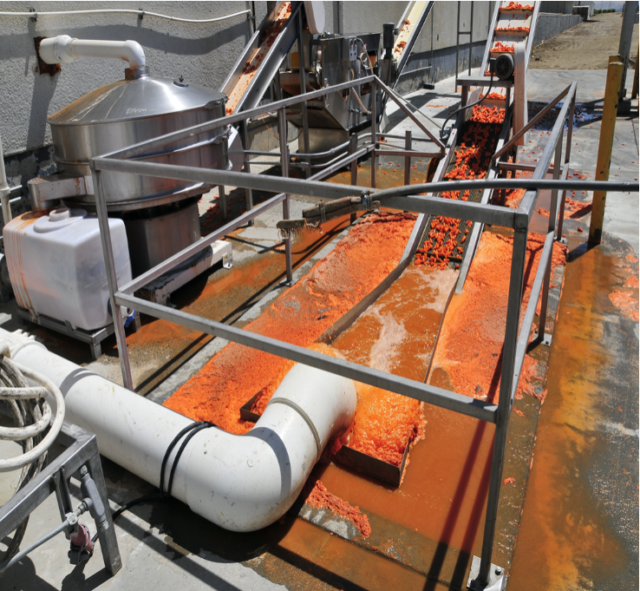

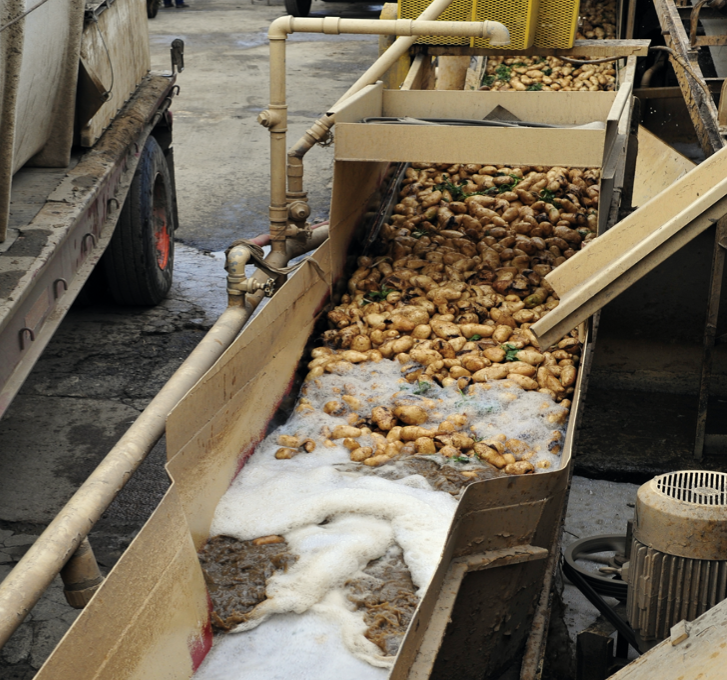

Food processing procedures are as varied as the food produced! The processing and packaging procedures for spaghetti sauce are a lot different from those of sausage, cheese and bread. And, each process produces their own unique waste streams.

That’s where we come in. We can work with your staff and custom-design a comprehensive washing and water treatment system based on your needs.

If you have to wash machinery, piping, conveyors, shelving or tanks, we can help you with pumping and heater packages featuring manual, automated and Variable Frequency Drive controls. A Variable Frequency Drive (VFD) system is one of the most cost effective units to run and maintain and allows multiple users at the same time. Different heating packages can be paired with the pumping and pressure washing systems so that you get the proper water temperature for your washing operation. Foaming, chemical injection and ozone disinfection systems can also be added to the washing systems, if required.

We can help you treat the wash water so that it can be properly discharged. If the washing process produces solids, we have a range of solutions to first separate the solids from the wastewater. After the solids are removed, we can process the water through our wastewater treatment systems.

We provide the following equipment:

VFD Controlled wash systems
Hot and Cold Water pressure washers
High efficiency heating systems
Sanitizers and Foaming Systems
Disinfection Fogging Systems
Debris & solids baskets and screens

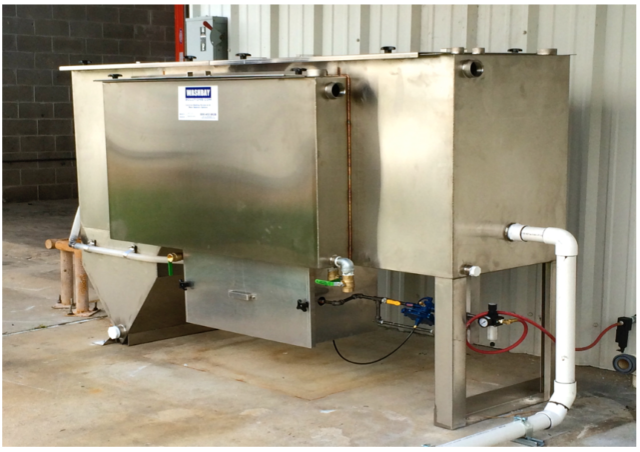

Oil Water Separators
Multi-media and carbon filtration

If you are in the food industry and need a washing and water treatment solution, give us a call now at 800-453-8639!

by Admin

October 3, 2017

Washing the wings of an aircraft. — The aircraft washing process is often a combination of foaming, washing and rinsing with either hot or cold water.

Since one of the company’s owners has been a pilot and flying enthusiast for the past 40 years, we also have extensive experience with aircraft maintenance and cleaning applications. In addition to supplying washing systems to military bases all over the world, we have also provided systems to many aircraft maintenance companies stateside.

Manual Wash – The aircraft washing process is often a combination of foaming, washing and rinsing with either hot or cold water. Depending on the aircraft type and location, we can design a system based specifically on your application.

For the initial foaming, we offer a state-of-the art portable foamer with a chemical concentrate tank which can easily be moved to the desired location near the aircraft. The operator can select either hot or cold water from the remote switch at the reel. An injection system in the foamer blends the chemical concentrate from the tank into the water stream to create an accurately diluted solution. Compressed air is then injected into the solution to create a thick, clinging foam which is then projected through the discharge hose and foam nozzle on to large surfaces at distances up to 40-45 feet.

For washing and rinsing the aircraft, the operator can use pressure washer hose reel and gun assemblies normally located on both sides of the aircraft and select either hot or cold water. These pressure washing units typically provide approximately 8-10 gpm of water at 175-200 psi from each reel. They can be used separately or at the same time, and use either hot or cold water independently of the other. The flow rate and pressure can also be varied, based on your application.

The hose reel systems normally include remote control capabilities, and the system can be programmed to permit only foaming, washing or rinsing to occur at any one time so the maximum flow rate matches the water treatment system’s capacity.

Automated Wash – We also have engineered turn-key automated aircraft wash systems designed to efficiently wash a wide range of aircraft. The systems can be programmed with a number of potential aircraft wash profiles which can be selected by the pilot or ground personnel using either a PLC with PanelView screen or remote control. As the aircraft approaches the wash area, an infrared sensor system automatically starts the selected wash program.

The wash system typically consists of a low pressure undercarriage wash, a fully-automated side wash system for the fuselage and wings, automated actuator valves for flow direction and control, a heavy-duty supply pump system, and water storage tanks. All components are either stainless steel or non-ferrous for corrosion resistance. The systems can be configured to wash with either recycled water or fresh water, and often incorporate rainwater control capability as well.

Water Treatment – Wash Bay Solutions designs closed-loop reclaim systems to capture, treat, store, and deliver clean recycled water to the pressure washers. If sewer connections are available, sewer discharge systems treat the processed water before it is discharged to the sewer.

Total systems can incorporate ozone disinfection systems, fully automated valves for filter backwashing, PLC control of all filter functions, and all non-ferrous components and hardware.

The recycling system can include a fresh water bypass manifold system that enables an operator to manually switch the entire system over to fresh water if necessary or desired. The recycling system will also automatically replenish itself to maintain a minimum volume of water to make up for any losses to the system from evaporation or carry-off.

Consulting – We are also available to do consulting work with aircraft washing facilities to improve their washing, painting and wastewater processing procedures.

by Admin

June 6, 2016

Many land management and forestry companies utilize a multitude of equipment ranging from bulldozers to light utility trucks. Work is often in off-road locations where equipment is exposed to many different elements and collects solids rather quickly, including mud, debris, seeds and spores. Cleaning this equipment is vital to having a successful operation since too many solids can foul the equipment and cause extended periods of down time.

Of particular concern to industry professionals are the plant seeds and spores which are often transported in the mud and debris that is picked up by vehicles and equipment. Effective cleaning, therefore, is critical to reducing the transport of invasive plant species that have the potential to upset the natural balance of plant life and wildlife.

Typical washing and water treatment solutions include:

Mighty Monitor Demucking Systems (Water Cannons)
Our revolutionary heavy-duty Mighty Monitor systems only use 20-60 gpm – approximately 1/10 to 1/20 of the amount of water used in the traditional water cannons. Our systems combine increased pressure and specialized nozzles to ensure a quality wash. Using fresh or recycled cold water, our Mighty Monitors clean quickly and effectively, in half the time of a typical pressure washer.

Portable Wash Containment Pads
Robustly designed for range of industrial applications, our portable wash containment pads can provide an economical alternative to a conventional wash pad. Easily transported and assembled, these wash pads are ideal for remote locations.

Closed Loop Systems
Our Wash Water Treatment Systems are heavy-duty, multi-stage reclaim systems, engineered and manufactured for the heavy industries. They can be customized for particular application and locations.

by Admin

July 28, 2014

Closed Loop Reclaim System for Oil and Gas Industry Equipment — To reduce both hauling costs and water usage, many oil field services companies have installed our Drilling Equipment (DE Series) Systems to treat and recycle their wastewater.

Oil and gas drilling, including hydraulic fracking, is a complicated endeavor. The nature of the work ensures that dirt, downhole acids, crude residues, waxes, and grease coat down-hole motors, pumps, subs, drill pipe, tanks, and vehicles. Constant washing and NDT testing is essential to maintaining the equipment in good working order. These processes, however, produce an enormous amount of water. Often, the wastewater is stored onsite and disposed of every few weeks – which can get very expensive.

To reduce both hauling costs and water usage, many oil field services companies have installed our Drilling Equipment (DE Series) Systems to treat and recycle their wastewater. Robustly designed and manufactured for the oil and gas industry, our heavy-duty, multi-stage treatment systems clean up the water for re-use or discharge. By simplifying the water handling, many clients are able to both increase production and reduce costs, resulting in pay back periods of only months!

The important first stage is the solids handling system. Depending on the amount of solids and the wash pad design, our engineers will develop a site-specific system to remove as many solids as possible before the water goes to the filtration systems.

The next stage of the system is the stainless steel clarifier oil water separator which removes most suspended solids (TSS), essentially all settleable solids and all free and dispersed non-emulsified oils from the waste stream.

Depending on the application, the next stage could be biological treatment. Our proprietary biological filter system uses a revolutionary, patented US technology, including specifically developed microbes combined with a highly efficient aeration technology, to treat the water and remove substantially all of the COD and FOG in the water.

In the final polishing stage, the water goes through an extremely efficient filtration process utilizing fully automated solids filtration and a proprietary blended activated carbon (GAC) polishing filtration, and a corona discharge ozone generator to prevent odors. Processed water passing through the system will be free of particles greater than 10 microns in size, substantially all emulsified oils, waxes and other volatile organic compounds.

STANDARD DE Series SYSTEM FEATURES:

Stainless Steel Construction
High-Efficiency Pumps
Corona Discharge Ozonation System
Solids Handling & Separation
TSS, COD, FOG Reduction
Multi-Stage / Multi-Pass Filtration
Pressurized Blended Carbon Polishing Filters
Auto-Backwashing Filters
NEMA 4X Control Panel with PLC controller

Depending on the location, many options are available to maximize the efficiency of the wastewater treatment system including:

OPTIONAL FEATURES:

SCADA and remote monitoring
UL/CSA Listing
Transportable equipment rooms
Rain Diverter Systems
Biological Treatment
Rain Water Harvesting Systems
Chemical/Acid/Salinity Resistant Pumps & Components
ORP / pH/ Salinity control system

DE SERIES SYSTEM SPECIFICATIONS

MODEL	DE 10/10	DE-30/20	DE-60/50	DE-100	DE-200
FLOW RATE, GPM	1-10	1-30	10-60	30-100	60-200
COALESCING MEDIA, CUBIC FT	4	8	24	48	96
CARBON BLEND MEDIA, CUBIC FT	6	18	50	100	200
RE-CIRCULATION PUMP, HP	1.5	3	3	5	5
RE-PRESSURIZATION PUMP, HP	1	3	5	7.5	10
OZONE SYSTEM	Up to 32 grams of ozone per hour
CONTROL SYSTEM	PLC, Automatic, Manual or Off
PUMP FRAME SIZE	34” W X 66” L		34” W X 96” L
POWER REQUIREMENTS	208 / 240 v 1 ph or 208 / 240 / 480 v 3 ph
* LARGER CAPACITY SYSTEMS (500-1500 GPM) ARE AVAILABLE

by Admin

July 28, 2014

Industrial forklifts are used in a variety of places including construction sites, shipyards, mines and drilling sites. They are invaluable in that they can unload pallets of materials, steel girders and pipes and other products from the delivery trucks and carry them to parts of the work sites that are not accessible to other vehicles. Larger, heavy-duty forklifts can also transport large containers from delivery trucks to dockside storage areas, and then to the ships. Due to the working conditions and locations, forklifts will often get extremely dirty. After washing, the wash water generated will be full of grease and oil.

Fork Lift Water Treatment System — Our Fork Lift (FL Series) Water Treatment Systems are heavy-duty, multi-stage reclaim and discharge systems.

Our Fork Lift (FL Series) Water Treatment Systems are heavy-duty, multi-stage reclaim and discharge systems. Depending on the usage, a certain amount of solids will be generated by the washing process. To handle the solids, our engineers will develop a site-specific solids removal system which could include sumps, trenches, screens, debris baskets and skimmers.

After many of the solids are removed in the first stage, the water will then be processed through a stainless steel clarifier oil water separator which removes most suspended solids (TSS), essentially all settleable solids and all free and dispersed non-emulsified oils from the waste stream.

After the clarifier separator, the water can either be discharged or further processed for re-use. If the water needs to be re-used, the water then goes through an extremely efficient filtration process utilizing fully automated solids filtration and a proprietary blended activated carbon (GAC) polishing filtration, and a corona discharge ozone generator to prevent odors. Processed water passing through the system will be free of particles greater than 10 microns in size, substantially all emulsified oils, waxes and other volatile organic compounds.

FL SERIES STANDARD FEATURES:

Stainless Steel Construction
High-Efficiency Pumps
Corona Discharge Ozonation System
Solids Handling & Separation
TSS & FOG Reduction
Multi-Stage / Multi-Pass Filtration
Pressurized Blended Carbon Polishing Filter
Auto-Backwashing Filters
NEMA 4X Control Panel with PLC controller

Depending on the location, many options are available to maximize the efficiency of the wastewater treatment system including:

OPTIONAL FEATURES:

Can be configured with existing equipment
SCADA and remote monitoring
UL/CSA Listing
Transportable equipment rooms
Rain Diverter Systems – if wash pads are uncovered
Rain Water Harvesting Systems
Chemical/Acid/Salinity Resistant Pumps & Components
ORP / pH control system

FL SERIES SYSTEM SPECIFICATIONS

MODEL	FL-10/10	FL-30/20	FL-60/50	FL-100*
FLOW RATE, GPM	1-10	1-30	10-60	30-100
COALESCING PLATE AREA, SF	41	124	211	400
COALESCING MEDIA, CF	4	8	24	48
APPROX. CLARIFIER SEPARATOR SIZE, FT (WxLxH)	3 x 7 x 5	3.5 x 8 x 6	4 x 10 x 6	5 x 11 x 7
RECLAIM RE-CIRCULATION PUMP, HP	1.5	3	3	5
RECLAIM RE-PRESSURIZATION PUMP, HP	1	3	5	7.5
OZONE SYSTEM	Up to 32 grams of ozone per hour
RECLAIM CONTROL SYSTEM	PLC, Automatic, Manual or Off
RECLAIM PUMP FRAME SIZE, FT (WxL) (TANKS ADDITIONAL)	3 X 6		3 x 8
POWER REQUIREMENTS	208 / 240 V 1 ph or 208 / 240 / 480 V 3 ph
* LARGER CAPACITY SYSTEMS ARE AVAILABLE

by Admin

July 28, 2014

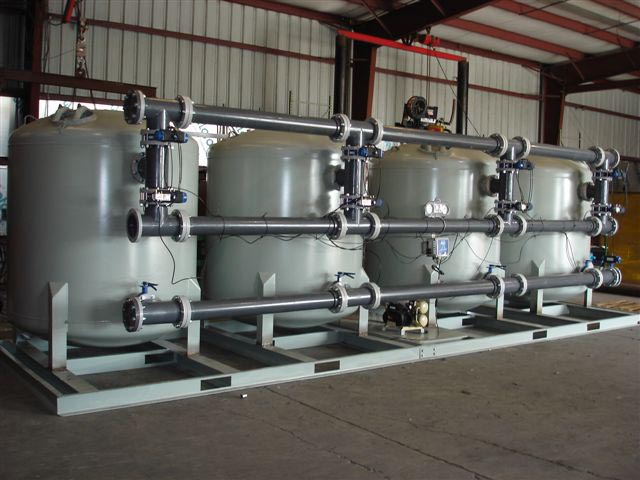

4-Vessel Filter System — 4-Vessel MINING & CONSTRUCTION (MC Series) TREATMENT SYSTEMS

As the demand for minerals and precious metals grows, mining companies are constantly working to keep up with demand and improve their mining methods while at the same time doing as much as they can to preserve the environment. Most mining and heavy construction work is predominantly done by heavy equipment such as LHD loaders, backhoes, excavators and dump trucks. This equipment gets coated with solids, dirt and grime on a daily basis.

Daily washing is an important part of maintaining the equipment in good working order. This washing, however, produces a lot of dirty water and solids. The most efficient way to reduce your water usage and hauling costs is to remove the solids and recycle the water.

Our Mining & Construction Equipment (MC Series) Systems are heavy-duty, multi-stage reclaim and discharge systems, engineered and manufactured for the mining and heavy construction industries.

Because of the enormous amount of solids generated by the washing process, the most critical first stage for these systems is the solids handling system. Depending on the wash pad design, our engineers will develop a site-specific system including sumps, trenches, screens and skimmers to remove as many solids as possible before the water goes to the subsequent filtration systems.

After many of the heavy solids are removed in the first stage, the water will then be processed through a stainless steel clarifier oil water separator which removes most suspended solids (TSS), essentially all settleable solids and all free and dispersed non-emulsified oils from the waste stream.

MC SERIES STANDARD FEATURES:

Stainless Steel Construction
High-Efficiency Pumps
Corona Discharge Ozonation System
Solids Handling & Separation
TSS & FOG Reduction
Multi-Stage / Multi-Pass Filtration
Pressurized Blended Carbon Polishing Filter
Auto-Backwashing Filters
NEMA 4X Control Panel with PLC controller

Depending on the location, many options are available to maximize the efficiency of the wastewater treatment system including:

OPTIONAL FEATURES:

Can be configured with existing equipment
SCADA and remote monitoring
UL/CSA Listing
Transportable equipment rooms
Rain Diverter Systems
Rain Water Harvesting Systems
Chemical/Acid/Salinity Resistant Pumps & Components
ORP / pH control system

MC SERIES SYSTEM SPECIFICATIONS

MODEL	MC-10/10	MC-30/20	MC-60/50	MC-100	MC-200*
FLOW RATE, GPM	1-10	1-30	10-60	30-100	60-200
COALESCING PLATE AREA, SF	41	124	211	400	600
COALESCING MEDIA, CF	4	8	24	48	96
APPROX. CLARIFIER SEPARATOR SIZE, FT (WxLxH)	3 x 7 x 5	3.5 x 8 x 6	4 x 10 x 6	5 x 11 x 7	7 x 13 x 9
RECLAIM RE-CIRCULATION PUMP, HP	1.5	3	3	5	5
RECLAIM RE-PRESSURIZATION PUMP, HP	1	3	5	7.5	10
OZONE SYSTEM	Up to 32 grams of ozone per hour
RECLAIM CONTROL SYSTEM	PLC, Automatic, Manual or Off
RECLAIM PUMP FRAME SIZE, FT (WxL) (TANKS ADDITIONAL)	3 X 6		3 x 8
POWER REQUIREMENTS	208 / 240 V 1 ph or 208 / 240 / 480 V 3 ph
* LARGER CAPACITY SYSTEMS (500-1500 GPM) ARE AVAILABLE

by Admin

December 12, 2012

Understanding the rigorous demands and often unique solutions needed to maintain the highest level of military and government readiness is a key component of our government operations. We believe that our wash water reclaim systems, oil water separators and pressure washers will provide the “Best Value for the Government” for the following reasons:

Heavy-Duty Construction: Since our systems are built for rigorous military operations, their construction is extremely heavy-duty. These systems will operate for years in the harshest environments.

Low Maintenance: Our equipment is designed to be both simple and sturdy. Most systems also have few moving parts so we rarely have issues with them.

Proven Track Record: Since 1991, JDI, Inc. has helped government facilities, educational institutions, and military installations solve complex washing, wastewater and recycling issues. By integrating a wide range of equipment from different manufacturers, we design and engineer complete systems based on our customers’ individual specifications.

Woman-owned Small Business: We strive to provide our government customers with timely solutions. JDI, Inc. is a well-respected, woman-owned small business that takes great pride in providing high quality products to the US Military and government.

Some of the products we provide to the US Military and government include:

Give us a call at 800-453-8639

Older Posts

Locomotive Pressure Washers & Wash Bay Systems Built for the Rail Industry

Industrial Pressure Washers for Locomotive Cleaning

Custom Locomotive Wash Bay & Wash Arch Systems

Water Recycling & Environmental Systems for Locomotive Wash Bays

Why Locomotive Operators Choose Wash Bay Solutions

Featured Products – Locomotive Industry

Frequently Asked Questions (FAQs)

Mining Truck Wash & Water Treatment Systems

MINING TRUCK WASHING SOLUTIONS:

MINING TRUCK WATER TREATMENT SYSTEMS

Livestock Hog Farm Cleaning & Disinfecting Washing Equipment

Food & Beverage Processing Washing

Aircraft Washing Systems

Land Management & Forestry Industry

Typical washing and water treatment solutions include:

Oil & Gas Drilling Equipment (DE Series) Closed Loop Reclaim Systems

STANDARD DE Series SYSTEM FEATURES:

OPTIONAL FEATURES:

DE SERIES SYSTEM SPECIFICATIONS

Fork Lift (FL Series) Water Treatment Systems

FL SERIES STANDARD FEATURES:

OPTIONAL FEATURES:

FL SERIES SYSTEM SPECIFICATIONS

MINING & CONSTRUCTION (MC Series) TREATMENT SYSTEMS

MC SERIES STANDARD FEATURES:

OPTIONAL FEATURES:

MC SERIES SYSTEM SPECIFICATIONS

Government & Military Solutions

Headquarters

WashBay Solutions International

Follow Our Activity
