Inclined Plate Clarifiers (IPCL Series)

September 14, 2010by Admin


How can inclined plate clarifiers help me save money?

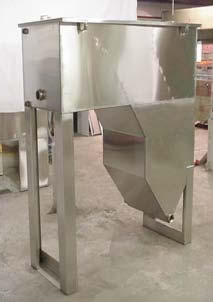

Inclined Plate Clarifier
Our Inclined Plate Clarifiers are designed to precipitate and remove suspended material in water.

Our Inclined Plate Clarifiers are designed to precipitate and remove suspended material in water. The IPCL Systems employ the use of a series of plates inclined at an angle of 55°. This specialized design allows it to perform all of the functions of a conventional solids contact clarifier at a fraction of the space and cost.
Features & Benefits

  • Low installation and maintenance costs
  • Easily installed indoors
  • Minimal start-up / re-start time
  • Occupies less floor space
  • Minimal field labor required to install

Performance

  • Excellent removal of suspended solids down to 1 ppm
  • Up to 1300 sq ft of plate surface area
  • Effective removal of hard to settle solids such as colloids
  • Ability to produce up to 3% – 5% concentrated sludge



Model Number of Plates Length (feet) Width (feet) Height (feet) Flow Rate (GPM)*
WB-IPCL-10 18 4 3 5.3 10
WB-IPCL-20 19 5.5 4.5 7.5 20
WB-IPCL-50 29 6.75 4.5 9 50
WB-IPCL-65 29 7 5.5 9.3 65
WB-IPCL-100 42 8.5 5.5 9.3 100
WB-IPCL-150 42 9 6.5 11 150
WB-IPCL-200 45 9.3 7.5 12 200
WB-IPCL-250 50 10.75 7.5 13 250
WB-IPCL-300 59 11.5 8.5 13.5 300

*Other flow rates and sizes are available.
