Sanitizing

August 6, 2020

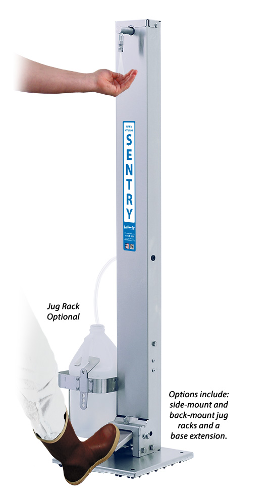

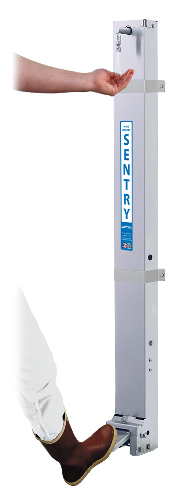

This commercial-grade Hand Sanitizer Dispenser is totally hands-free!  Constructed of stainless steel for maximum durability, it is perfect for dispensing both gel and liquid hand hygiene products. A foot pedal activates a stainless steel mechanical pump that sprays a field-adjustable amount of product into the users hand – eliminating contamination due to hand contact.

Ideal for food preparation areas, hospitals, military facilities, retail stores, offices and countless other locations, this dispenser can be free-standing or permanently mounted to the floor or wall. The floor-mounted unit has the option of having a lockable enclosure to discourage tampering or theft. Easily installed in minutes!


May 8, 2020

Foamers are chemical applicators that use compressed air to create thick foam that can be projected onto any surface. Foamers greatly improve the effectiveness of cleaners and disinfectants since they increase the surface dwell time and assure complete coverage.  Using foam also reduces the over-application of chemical since you can see exactly where the chemical has been applied.

Foamer Applications

  • Large Area Foam Cleaning
  • Food & Beverage Processing
  • Industrial
  • Metal Processing
  • Military
  • Farming
  • Paper Mills
  • Odor Control

Foamers are available in a variety of configurations to suit large or small jobs. They can be used as a pre-wash, a post-wash disinfectant, or general wash in facilities where plumbed water is unavailable. In facilities without compressed air, foamers can use boosted water pressure, a venturi injection system and atmospheric air to create foam.

A range of foam volumes and throw distances are available.  We can recommend the best model to use based on your application and desired coverage speed.  Wall mount models include heavy-duty stainless steel mounting enclosures and portable models feature heavy-duty stainless steel carts.

Air Pump-Fed Foamers

These units are powered by compressed air and are designed for use in facilities where plumbed water pressure is unavailable, unreliable or lower than the 35 PSI required. An air-operated diaphragm pump, mounted inside a stainless steel enclosure, draws and pressurizes a ready-to-use chemical solution to produce foam and project it through the hose, wand and nozzle to any surface up to 15 feet. The portable model draws pre-diluted chemical from an integrated tank on a cart and the mounted model draws from a customer-supplied stationary tank.

Portable Features

  • Rugged 1/2″ air-operated, double-diaphragm pump
  • Lockable stainless steel pump enclosure
  • Air inlet ball valve and regulator/filter
  • Machined poly foamer body
  • Integrated 20, 40 or 60 gallon poly chemical concentrate tank with strainer
  • All stainless steel 4-wheel cart with integrated hose rack
  • Non-marking tires w/SS swivel casters – (2) rigid and (2) swivel
  • Single or dual hoses with Open Flow Wands
  • Adjustable foam consistency (wet/dry)

Wall-Mounted Features

  • Rugged 1/2″ air-operated, double-diaphragm pump
  • Lockable stainless steel pump enclosure
  • Air inlet ball valve and regulator/filter
  • Machined poly foamer body
  • 50′ discharge hose & stainless steel ball valve
  • Stainless steel foam wand & fan nozzle
  • Provides 8 minutes of foaming time per 20 gallons of solution
  • Covers up to 500 sq ft (46.5 sq m) in 1 minute
  • Adjustable foam consistency (wet/dry)

Boosted & High Water Pressure Venturi Foamers

These water-driven venturi injection systems use boosted water pressure (125-350 psi), high water pressure (400-1000 psi) or a pressure washer to draw and blend chemical concentrate from a tank into the water stream to create an accurately diluted solution. Air is injected into the solution to create the foam which is then projected through the nozzle onto surfaces at distances from 15 to 45 feet. The portable model draws pre-diluted chemical from an integrated tank on a cart and the mounted model draws from a customer-supplied stationary tank.

Portable Features

  • Stainless steel 4-wheel cart with non-marking tires
  • Two stainless steel swivel casters
  • 20 or 60 gallon, wide-mouth, polyethylene chemical tank with drain
  • Stainless steel water inlet ball valve
  • Machined poly or stainless steel foamer body
  • 20 color-coded precision metering tips to set dilution ratios
  • 50’ discharge hose
  • Poly or stainless steel foam wand
  • Fan pattern nozzle for broad coverage
  •   Zero degree nozzle for high or distant coverage
  • Adjustable foam consistency (wet/dry
  • Available with other options

Wall-Mounted Features

  • Stainless steel mounting bracket
  • Machined poly or stainless steel foamer body
  • 20 color-coded precision metering tips to set dilution ratios
  • 50’ discharge hose
  • Poly or stainless steel foam wand
  • Fan pattern nozzle for broad coverage
  • Zero degree nozzle for high or distant coverage
  • Adjustable foam consistency (wet/dry)
  • Available with ability to apply 2 chemicals at the same time

High Pressure Airless Foamers

Our Airless Foamers are medium to high volume foam applicators for projecting foaming chemicals without compressed air. Just attach it to a wall and connect it to a water source. These systems use venturi injection and boosted water pressure to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose and trigger gun to the “airless” foam wand that draws in atmospheric air to create foam.  The foam can be projected on to any surface at distances up to 12 feet (depending on water pressure and nozzle).

Portable Features

  • Uses boosted water pressure – HP (400-1000 psi)
  • No compressed air required
  • Designed for foam cleaning medium to large sized areas
  • Stainless steel cart with stainless steel bucket strap, integrated hose rack and non-marking tires
  • Stainless steel inlet ball valve
  • Machined stainless steel or poly injector body
  • 20 color-coded precision metering tips to set dilution ratios
  • Discharge hose and trigger gun
  • Stainless steel airless foam wand

Wall-Mounted Features

  • Uses boosted water pressure – HP (400-1000 psi)
  • No compressed air required
  • Designed for foam cleaning medium to large sized areas
  • Stainless steel inlet ball valve
  • Machined stainless steel or poly injector body
  • 20 color-coded precision metering tips to set dilution ratios
  • Discharge hose and trigger gun
  • Stainless steel airless foam wand

May 8, 2020

We can help you design multi-function systems consisting of proportioning, sanitizing, foaming and/or rinsing systems.

Proportioning & Foaming Systems

Our water driven chemical proportioning system will automatically refill a tank with ready-to-use chemical solution. When the solution in the tank drops below a pre-set level, the float valve triggers an air-activated solenoid to start the water flow. Using city water pressure, a venturi injection system draws and blends chemical concentrate into the water stream to create an accurately diluted solution. The system cycles continuously. Dual magnetic float valve design includes a primary valve to regulate normal operation and a secondary fail-safe valve to shut off the system if the primary float valve malfunctions.

Upon demand, an air driven pump system will transfer ready-to-use chemical solution to the foamer. The foamer creates foam by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and nozzle on to any surface at distances up to 12 feet.

Proportioning & Foamer System

  • Heavy-duty chemical tank with drain
  • Magnetic float valves (primary and fail-safe) with polypropylene floats
  • Air inlet ball valve
  • Air-activated water solenoid
  • Machined injector body
  • Color-coded precision metering tips
  • Polypropylene 1/2″ air-operated double diaphragm pump
  • Compressed air ball valve & regulator/filter with gauge
  • Chemical solution suction tube with strainer
  • Discharge hose with MPT fitting
  • Machined foamers
  • Stainless steel inlet and discharge ball valves
  • 50′ hoses, polypropylene foam wand & fan nozzle
  • Stainless steel hose hangars

Sanitizing & Rinsing System

We can design combination systems for applying one chemical as foam, another chemical as a sanitizing spray and for rinsing. Using standard city water pressure, a venturi injection system draws and blends chemical concentrates into the water streams to create accurately diluted solutions using precision metering tips to control chemical usage. Compressed air is injected into the foaming solution which is then projected through the foam hose and fan nozzle. The sanitizer solution can be projected as a “flooding” spray for fast complete coverage. Finally, the system rinses at full pressure using stainless steel nozzles.

Features

  • Designed for precision foam application, and to rinse and sanitize medium to large surfaces and objects
  • Adjustable foam consistency (wet/dry)
  • Stainless steel mounting bracket
  • Stainless steel inlet and discharge ball valves
  • Machined foamer and sanitizer bodies
  • Color-coded precision metering tips to set dilution ratios
  • Combo foam / sanitize hose, polypropylene foam wand and fan nozzle
  • Rinse hose and stainless steel nozzle

April 23, 2020

Sanitizing Foggers

Foggers were typically used for sanitation in food and beverage facilities. Today, however, foggers and atomizers are now being used to easily apply disinfectants and sanitizers to hospitals, schools, hotels, airplanes, cruise ships, warehouses and public transit facilities.

Using compressed air, foggers atomize ready-to-use chemical disinfecting solutions and project the fog/mist particles into the air or onto exposed surfaces.

Foggers produce dry to wet fog, and come in range of models and sizes from small hand-held models to portable systems to permanent-mount, inline systems that can project particles up to 25 feet in 8 directions!  Let our engineers help you design the optimal fogging system for your facility.

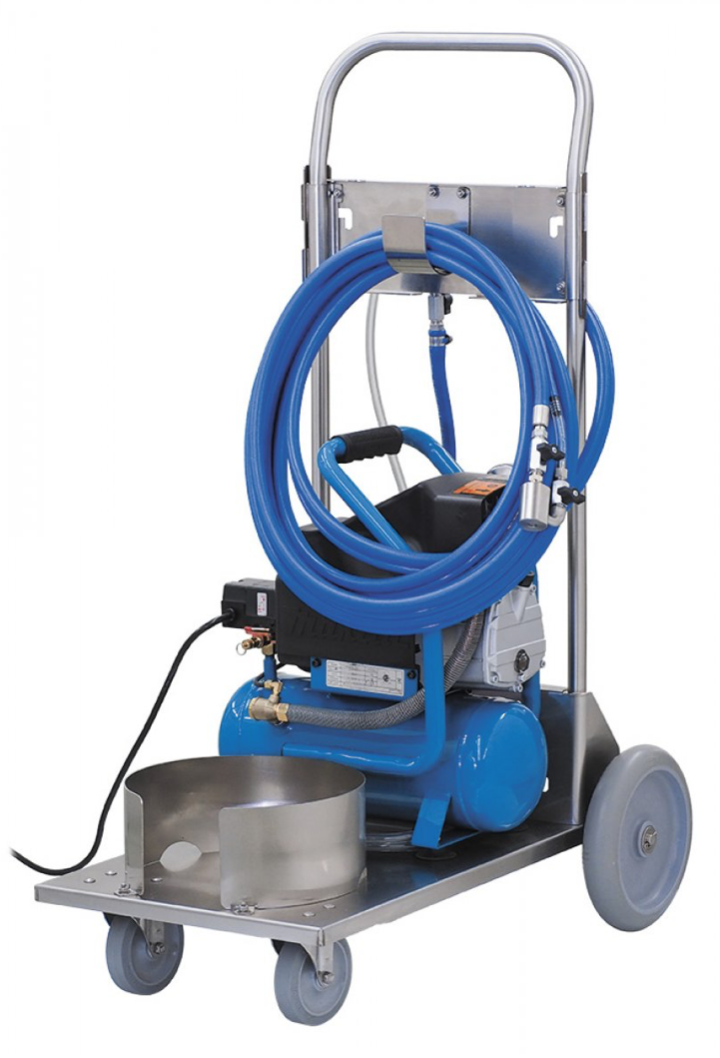

Self-Contained Portable Fogger Cart

Our Portable Fogger Cart is one of our most versatile models – perfect for schools, hospitals, doctor’s offices and hotels. Powered only by a standard 120V electrical connection, this portable, self-contained system comes complete with a quiet on-board compressor, fogger body, hose and thumb-gun on a stainless steel cart. With the thumb-gun, it allows you to deliver chemical fog precisely where you need it.

The system uses compressed air to draw pre-diluted chemical solution from a pail on the cart to the fogger body which atomizes the chemical and projects it as small to medium size “damp” particles at distances up to 15 feet. Fog (mist) fills the air and saturates exposed surfaces, including hard-to-reach areas. Just plug it in and go!

Features

  • Stainless steel fogger body
  • 120V air compressor
  • 25′ twin-line air/chemical hose with activation ball valves
  • 10 color-coded precision metering tips can refine the particle size by reducing chemical usage
  • Stainless steel, 4 wheel cart assembly with hose rack
  • Non-marking tires with stainless steel swivel casters
  • Stainless steel metering tip holder
  • Stainless steel construction ensures durability and years of outstanding performance

Portable 2-4 Way Fogger

The Portable 5 Gallon 2-4 Way Fogger is a chemical atomizer that uses compressed air and
venturi action to draw ready-to-use chemical solution from a 5 gallon pail on the cart through a
telescoping mast to the fogger body which atomizes the chemical and projects it as small to
medium size “damp” particles at distances up to 15 feet. Fog (mist) fills the air and saturates
exposed surfaces, including hard-to-reach areas.

Ball valves on two fogger bodies allow for conversion to 2-Way
fogging for narrow areas and the telescoping mast allows for
variable height adjustment up to 80 inches.
You can refine the particle size for your particular application
and manage chemical use by choosing different optional precise
metering tips.

Features

  • (4) Four polypropylene fogger bodies mounted on adjustable mast
  • (2) Two air ball valves to control air flow
  • (2) Two 10′ chemical suction tubes and strainers
  • (4) Four metering tip holders
  • Stainless steel 2-wheel cart with non-marking tires
  • Round stainless steel 5 gallon pail rack (square rack optional)
  • Stainless steel, adjustable height fogger mast

Compact Hand-Held Fogger

The Compact Hand-Held Fogger is a chemical atomizer that uses compressed air and venturi
action to draw pre-diluted chemical solution from the attached bottle, atomize the chemical, and
project it as small to medium size “damp” particles at distances up to 15 feet.
It is easy to use! Just fill the bottle with your pre-mixed chemical/disinfectant, connect compressed
air, and press the thumb gun activator. Fog/mist will fill the air and saturate any exposed surfaces,
including hard-to-reach areas. You can refine the particle size and manage chemical use by
choosing the correct precise metering tip for your particular application.

Features

  • Polypropylene fogger body attached to bottle top
  • Lightweight wide-mouth, polyethylene quart bottle
  • Thumb trigger gun with easy air hose connection
  • 10 color-coded precision metering tips
  • Metering tip holder

Pump Fed Foggers

Our Pump Fed Fogger is a chemical atomizer receives ready-to-use chemical from a central
chemical feed system and uses compressed air to atomize the solution and project it as small to
medium size “damp” particles up to 15 feet in 4 directions. Fog (mist) fills the air and saturates exposed surfaces, including hard-to-reach areas. It is also available as a 2 or 8 way fogger.

Air and chemical solution flow can be activated manually or activated in multiple zones throughout your facility using PLC controllers. A needle valve can refine the particle size for your particular application and
manage chemical use and a check valve prevents excessive dripping after shutdown.

Includes

  • Machined polypropylene ceiling manifold
  • Machined polypropylene fogger body
  • Chemical needle valve
  • Chemical check valve
