High Efficiency Coalescing Media

June 15, 2021by Admin


In some applications, a higher efficiency media is required for environmental concerns. This media uses its high surface to volume ratio to provide extremely efficient oil/ water/ solids separation.

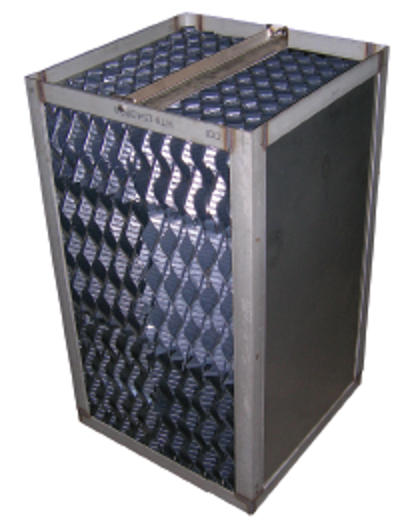

This media is constructed of oleophilic coalescing plates arranged in a cross-fluted configura­tion that provides between 31–69 square feet of oil coalesc­ing surface and 7–17 square feet of solids settling area per cubic foot of media. Each plate has a series of angled ribs, which are sloped from the bottom of the separa­tion chamber to the top at a 60° angle establishing a com­pound inclined surface.

  • Available in stainless steel, PVC, HPVC, polypropylene and stainless steel
  • Vertical slant rib plate spacing of ½”, ¾” or 1 ¼” with slant ribs alternating direction by 90°
  • Supplied in 1’ cubes with optional stainless steel frames for easy installation and removal

The separator and media design maintains a sinusoidal laminar flow throughout the media so the maximum amount of oil separation is achieved. Coalesced oil can flow unimpeded along the plate surfaces to the top of the separator where it is easily removed.

Give us a call at 800-453- 8639 for more information!
