Coalescing Media

June 24, 2021

CF-CP Media (Cross-Flow/Corrugated Plate) Oil Water Separator Media
Introduced a new coalescing media with a corrugated, cross-flow design.

In many washing applications, huge volumes of solids are generated during the washing process. This is especially true in the construction and mining industries. Some of the heavier solids drop out of suspension quickly while others get entrained in the oily wastewater.

To insure our oil water separators do not clog in these high solids washing applications, we have developed a new corrugated plate coalescing media with a cross-flow design.

This new media design is a series of plates curved in a simple wave shape. As the water enters the separator, the flow is directed evenly across the surface of the media plates. The solids are captured and fall to the trough area of the corrugated plates below and the oils rise and stick to the trough area of the plates above.

The separator design maintains laminar flow throughout the media so the oil and solids do not remix. Separated oil flows upwards along the plates to the top of the separator where it can be removed and solids slide down the smooth corrugated plates to the hopper area where they can be easily removed.

  • Available in stainless steel, PVC, HPVC and polypropylene
  • Plate spacing of ½”, ¾” or 1 ¼” depending on application
  • Supplied in blocks for easy installation and removal

By coupling high efficiency separation with easy maintenance of this new media, you will ensure your oil water separator operates at peak performance in high solids applications.

Give us a call at 800-453- 8639 for more information!

CF-CP Media (Cross-Flow/Corrugated Plate) Oil Water Separator Media
Site View of our new coalescing media with a corrugated, cross-flow design.

June 15, 2021

In some applications, a higher efficiency media is required for environmental concerns. This media uses its high surface to volume ratio to provide extremely efficient oil/ water/ solids separation.

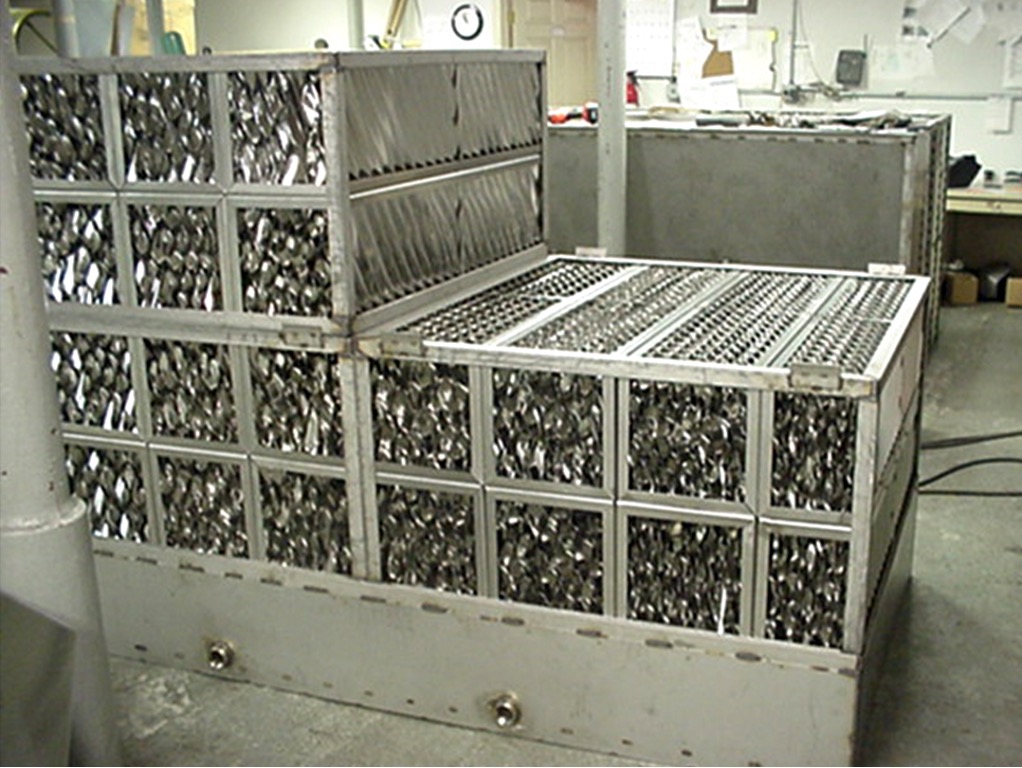

This media is constructed of oleophilic coalescing plates arranged in a cross-fluted configura­tion that provides between 31–69 square feet of oil coalesc­ing surface and 7–17 square feet of solids settling area per cubic foot of media. Each plate has a series of angled ribs, which are sloped from the bottom of the separa­tion chamber to the top at a 60° angle establishing a com­pound inclined surface.

  • Available in stainless steel, PVC, HPVC, polypropylene and stainless steel
  • Vertical slant rib plate spacing of ½”, ¾” or 1 ¼” with slant ribs alternating direction by 90°
  • Supplied in 1’ cubes with optional stainless steel frames for easy installation and removal

The separator and media design maintains a sinusoidal laminar flow throughout the media so the maximum amount of oil separation is achieved. Coalesced oil can flow unimpeded along the plate surfaces to the top of the separator where it is easily removed.

Give us a call at 800-453- 8639 for more information!


June 10, 2021

Our standard media has vastly superior properties compared to the traditional media used in oil-water separators. These properties result in a more efficient and effective separation than that attained by traditional coalescing media.

  • A larger amount of surface area per cubic foot of media allows for greater oil drop coalescence. This media has 132 ft2/ft3 surface area for oil droplets to contact. Other typical coalescing media have about 48 ft2/ft3 to 68 ft2/ft3.
  • A more efficient first step separation reduces the need for a second polishing step. Our media removes 99.9% of oil droplets 20 microns in size and larger. This meets EPA Method 1664 Revision A and European Standard EN 858-1.
  • An open design eliminates trapping of particles and subsequent clogging of water channels. Oil water separators with this media require fewer maintenance shut-downs and separates oil and water faster.
  • Where higher-than-normal operating temperatures are required, our media outperforms its competitors. It works effectively in temperatures up to 212°F, versus a maximum temperature of about 120°F for competing media.

Give us a call at 800-453- 8639 for more information!
