Multi-Media (MM Series) Water Filtration System for Sewer Discharge

April 9, 2018by Admin

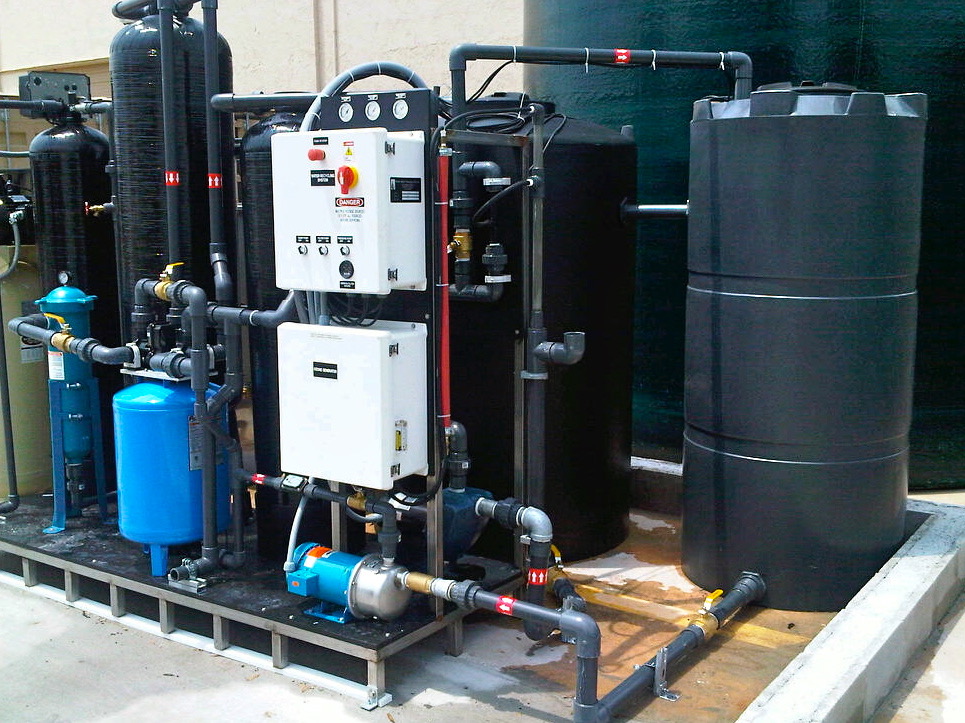

MM Series Water Filtration System
MM Series Water Filtration System

The MM-Series Water Treatment System is a complete self-contained, extremely efficient filtration system consisting of a fully automated multi-media filter and carbon polishing filter.

Processed water is initially filtered to contain no particles greater than 40 microns in size. It is then filtered further so that it is free of substantially all emulsified oils, waxes and other volatile organic compounds. Limited soaps and detergents may remain in the treated water. Processed water shall be acceptable to discharge to the sewer.   The carbon or carbon clay mixture can be tailored to meet specific local effluent requirements and adjusted based on the testing results.

The filters are programmed to automatically backwash back to the wash bay using domestic water. It is designed to be simple to operate but very effective in its ability to meet today’s environmental requirements.

STANDARD FEATURES:

  •  Automated Self-Cleaning Multi-Media Deep Bed Filter
  •  Carbon polishing filter
  •  Tailored media to meet compliance standards
  •  High Efficiency Self-priming Filter Pump
  •  Automatic or Manual Control System
  •  PLC controller for back wash operations and valve actuation
  •   Stainless Steel frame
  •   Skid-mounted for easy portability
  •  All controls, and level switches
  •  Low operating and maintenance costs

OPTIONAL FEATURES:

  • Pre-filtration for heavy solids removal
  • Ozone system for odor control
  • PLC control with remote monitoring capability
  • Oil content monitor and alarm
  • pH control system
  • U.L. Listing
  • Can be installed in portable equipment room or trailer

MM-SERIES SYSTEM SPECIFICATIONS

MODEL: MM-5 MM-10 MM-35 MM-65 MM-100
FLOW RATE 5 gpm 10 gpm 35 gpm 65 gpm 100 gpm
FILTER PUMP 3/4 hp 1 hp 2 hp 3 hp 5 hp
 INLET 2” 2” 2” 2” 2”
 OUTLET 1” 1” 2” 2” 2”
WEIGHT  (lbs.) 450 500 600 700 800
 CONTROL SYSTEM Automatic or Manual Control
 FILTRATION Multi-Media Deep Bed Filter
 WATER POLISHING Carbon Deep Bed Filter
UTILITIES 3 phase 240/480/575 V 60 Hz or single phase 230V
