sewer discharge systems

February 16, 2022



Designed to remove extensive contamination, our heavy-duty, multi-stage, discharge treatment systems treat wash water so it can be safely discharged to the sewer or, in many cases, the surroundings.

Stage 1 – Solids Settling



Advanced Technology for treating washwater

Almost all commercial washing operations produce some solids so the first stage of our filtration process is the solids handling system. We help you develop site-specific solutions to eliminate as many solids as possible before running the water through to the next stage of filtration. Solutions include custom-designed sumps, basins, trenches or screening systems.

Stage 2 – Oils & Solids Separation

After the coarse solids settling, the water is processed through either a multi-compartment stainless steel oil water separator or a stainless steel clarifier oil-water separator, which separates out smaller suspended solids, oil and water. In the first compartment of the clarifier oil water separator, free oils float to the surface.  In the second section, the stainless steel clarifying plates remove coarse amounts of oil from the waste stream and remove as much Total Suspended Solids (TSS) as possible.  The angles of the non-clogging plates are 55° which will allow any solids to slide down the plates into the solids hopper, where they can easily be pumped out.   Finally, the coalescing media removes essentially 100% of all free and dispersed non-emulsified oils so the FOG effluent concentration can be as low as 5 ppm.

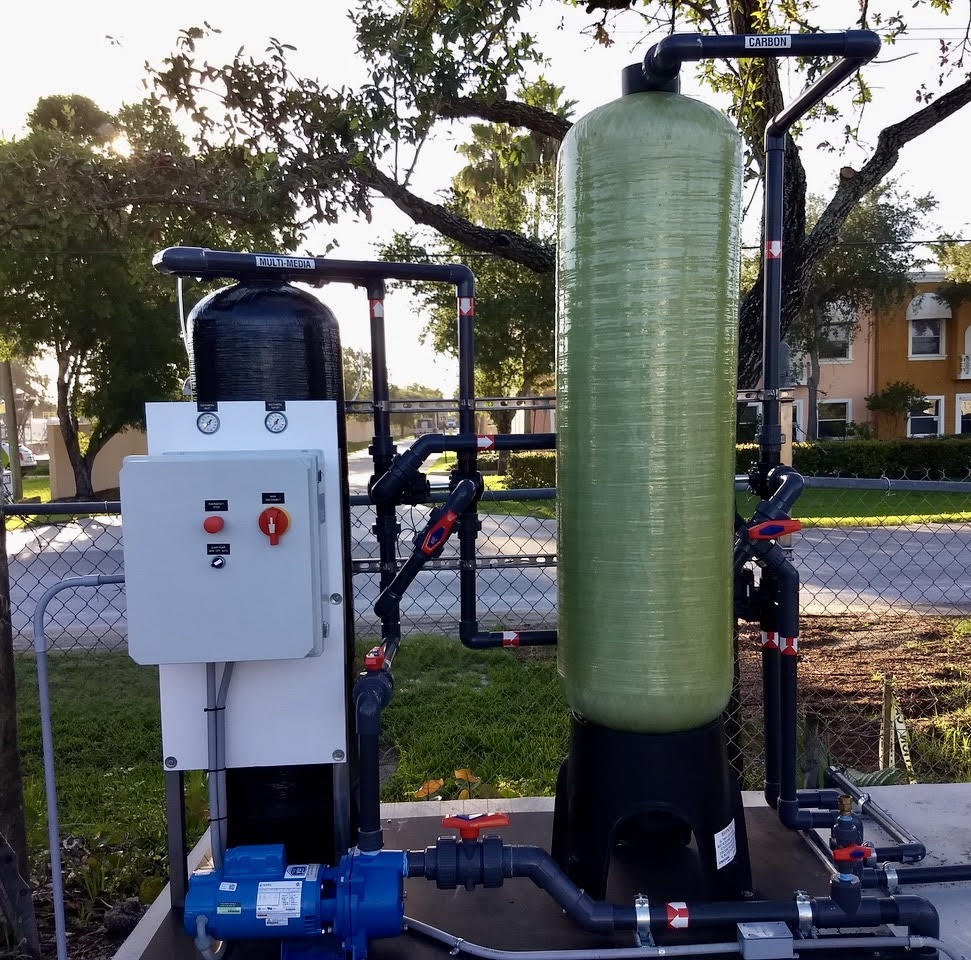

Stage 3 – Water Filtration & Polishing

After the clarifier oil-water separator, the water is pumped though a multi-media (sand, gravel, anthracite) filter and then safely discharged to the sewer or surroundings. Processed water passing through the system will be free of substantially all emulsified oils, waxes and other volatile organic compounds with only limited soaps and detergents remaining in the treated water. If needed, a blended activated carbon or a carbon/clay mixture tailored to a particular waste stream can be added as an optional polishing filter.

System Features

  • Non-Ferrous Construction – Stainless Steel, PVC
  • Fully-Automatic, pre-wired
  • Clarifier Separator System
    • Stainless Steel Clarifier Oil/Water Separator with 55° Hopper
    • Advanced European coalescing media designed to remove oil droplets greater than 20 microns
    • Electric or Air Diaphragm pump with controller
  • Discharge Filtration System
    • Automated Self-Cleaning Multi-Media and/or Clay/Carbon Fiberglass Filter Tank
    • Heavy-duty, high efficiency Pump
    • Sensors and interconnecting Schedule 80 plumbing
    • NEMA-4X  control panel
    • PLC controller for automatic back wash operations
    • All components mounted on heavy-duty stainless steel skid

Depending on the location, many options are available to maximize the efficiency of the wastewater treatment system including:

Optional Features

  • Can be configured with existing equipment
  • SCADA and remote monitoring UL/CSA Listing
  • Transportable equipment rooms
  • Rain Diverter Systems
  • Chemical/Acid/Salinity Resistant Pumps & Components
  • pH control system

TYPICAL MM-SERIES SYSTEM SPECIFICATIONS

MODEL

MM-10/10

MM-35/20

MM-65/50

MM-100*

DESIGN FLOW RATE, GPM

1-10

1-25

10-55

30-100

COALESCING PLATE AREA, SF

41

124

211

400

COALESCING MEDIA, CF

4

8

24

48

CLARIFIER SEPARATOR SIZE, FT (WxLxH)

3 x 7 x 5

3.5 x 8 x 6

4 x 10 x 6

5 x 11 x 7

NON-EMUSIFYING INFLUENT PUMP, GPM MAX

20

50

75

125

MULTI-MEDIA, LBS

300-500

500-1000

2500-2600

3700-4200

OPTIONAL POLISHING CLAY/CARBON, CF

4-15

10-40

20-40

40

FILTER PUMP, HP

1.5

2

3

5

DIRTY WATER STORAGE VOLUME, GAL

500-750

500-1000

750-1000

1000-1500

CONTROL SYSTEM

PLC, Automatic, Manual or Off

PUMP FRAME SIZE, FT (WxLxH)
(TANKS ADDITIONAL)

3 x 6 x 6.5

3 x 8 x 8

POWER REQUIREMENTS

208 / 240 V 1 ph   or  208 / 240 / 480 V 3 ph



* LARGER CAPACITY SYSTEMS (200-1500 GPM) ARE AVAILABLE



APPLICATIONS:




October 3, 2017

Washing the wings of an aircraft.
The aircraft washing process is often a combination of foaming, washing and rinsing with either hot or cold water.

Since one of the company’s owners has been a pilot and flying enthusiast for the past 40 years, we also have extensive experience with aircraft maintenance and cleaning applications. In addition to supplying washing systems to military bases all over the world, we have also provided systems to many aircraft maintenance companies stateside.

Manual Wash – The aircraft washing process is often a combination of foaming, washing and rinsing with either hot or cold water. Depending on the aircraft type and location, we can design a system based specifically on your application.

For the initial foaming, we offer a state-of-the art portable foamer with a chemical concentrate tank which can easily be moved to the desired location near the aircraft. The operator can select either hot or cold water from the remote switch at the reel. An injection system in the foamer blends the chemical concentrate from the tank into the water stream to create an accurately diluted solution. Compressed air is then injected into the solution to create a thick, clinging foam which is then projected through the discharge hose and foam nozzle on to large surfaces at distances up to 40-45 feet.

For washing and rinsing the aircraft, the operator can use pressure washer hose reel and gun assemblies normally located on both sides of the aircraft and select either hot or cold water. These pressure washing units typically provide approximately 8-10 gpm of water at 175-200 psi from each reel. They can be used separately or at the same time, and use either hot or cold water independently of the other. The flow rate and pressure can also be varied, based on your application.

The hose reel systems normally include remote control capabilities, and the system can be programmed to permit only foaming, washing or rinsing to occur at any one time so the maximum flow rate matches the water treatment system’s capacity.

Automated Wash – We also have engineered turn-key automated aircraft wash systems designed to efficiently wash a wide range of aircraft. The systems can be programmed with a number of potential aircraft wash profiles which can be selected by the pilot or ground personnel using either a PLC with PanelView screen or remote control. As the aircraft approaches the wash area, an infrared sensor system automatically starts the selected wash program.

The wash system typically consists of a low pressure undercarriage wash, a fully-automated side wash system for the fuselage and wings, automated actuator valves for flow direction and control, a heavy-duty supply pump system, and water storage tanks. All components are either stainless steel or non-ferrous for corrosion resistance. The systems can be configured to wash with either recycled water or fresh water, and often incorporate rainwater control capability as well.

Water Treatment – Wash Bay Solutions designs closed-loop reclaim systems to capture, treat, store, and deliver clean recycled water to the pressure washers. If sewer connections are available, sewer discharge systems treat the processed water before it is discharged to the sewer.

Total systems can incorporate ozone disinfection systems, fully automated valves for filter backwashing, PLC control of all filter functions, and all non-ferrous components and hardware.

The recycling system can include a fresh water bypass manifold system that enables an operator to manually switch the entire system over to fresh water if necessary or desired. The recycling system will also automatically replenish itself to maintain a minimum volume of water to make up for any losses to the system from evaporation or carry-off.

Consulting – We are also available to do consulting work with aircraft washing facilities to improve their washing, painting and wastewater processing procedures.
