parts washing

June 26, 2018

Robustly designed for range of industrial applications from oilfield pipe washing to large equipment washing, our (PWS – Series) portable parts washing stands can provide an economical alternative to a concrete wash pad.

FEATURES:

  • Designed to be surface-mounted
  • No excavation required
  • Placed directly on top of existing surface
  • Built to any size and configuration
  • Fiberglass composite system consisting of a 1/4” steel plate core completely encapsulated in fiberglass
  • 12” high walls, various lengths & widths available
  • Easy to relocate by forklift without disassembly
  • Drain port for fluid removal or connection to plumbing
  • Simply maintained
  • Projected useful life of 15-20 years

ADVANTAGES:

Minimal site preparation, no excavation, fast, clean installation, immediate use, non-porous design, superior chemical resistance and portability are only some of the many our parts washing stand’s advantages.

Each parts washing stand is manufactured from heavy-duty fiberglass laminations completely encapsulating a steel core. The steel core makes it the most rugged and durable wash water containment system available today. This core keeps the spill containment system strong and flexible no matter what. In addition, each system includes (4) 1-1/2″ threaded coupling with 2 bronze ball valves for fluid drainage.

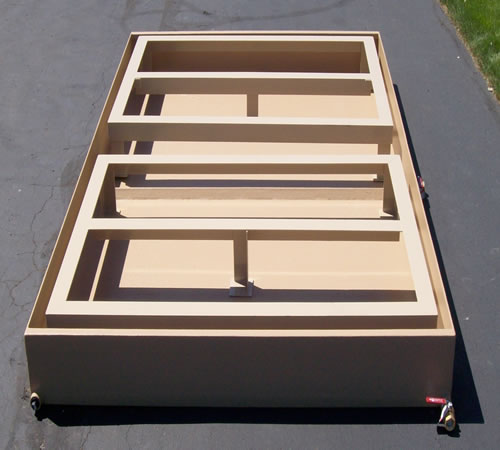

two removable pedestal frames

SUPPORT PEDESTALS

Inside are two removable pedestal frames to support the grates and raise equipment above the surface. Each system also has a 2″ divider wall running across the middle of the system to compartmentalize wash water or spills.

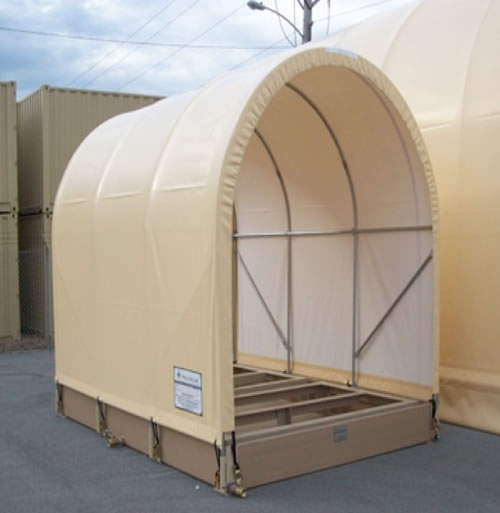

portable parts washing covers and walls

OPTONAL COVERS AND WALLS

To contain the wash water, the system is available with an optional 10′ high canopy mounted to the system. Each end is left open for access.

Fiberglass or poly walls are also available. They come in 4’, 6’ or 8’ heights and can be placed on 3 sides for efficient washing.

Interactive 3D Visual of our Portable Parts Washing Stands

Please click the image below to interact with the drawing. It may take a few seconds to load.

Give us a call for more product information – 800-453-8639


March 5, 2014

Are you washing with dirty water?

Many industries have parts washing systems that are critical to their production. Often used on a continuous basis, they remove heavy oils, dry lubes and machining particles off production parts. Many of these wash systems require constant cleaning and filtration to not to re-contaminate the parts.

Our oil water separator systems will remove 99.9% of free and dispersed non-emulsified oil droplets in the wash water  – greatly improving the quality of the cleaning water and extending the time before having to dump and re-charge. They will also help drop out particles from the wash water.

Oil Water Separator
Featuring an image of one of our oil water separator designs.

Available in a range of dimensions and flow rates, our oil water separators can be can be integrated easily with the existing parts washing systems and customized with a variety of skimming, monitoring, and pumping packages.  All of our systems are constructed of stainless steel and heavy-duty components for maximum life and performance.

Benefits

  • 99% Removal of all free oil
  • Small foot-print – compact design
  • Low maintenance costs
  • Solids storage capability
  • Easily integrated into existing systems

Above Ground Oil/Water Separators

OWS Model # Dimensions
W x H x L (ft)
Max Flowrate, GPM

WB-GS-1

1 x 2 x 4 3

WB-GS-2

2 x 2 x 4 6

WB-GS-3

3 x 2 x 4 9

WB-GM-1

1 x 2 x 5 6

WB-GM-2

2 x 2 x 5 12

WB-GM-3

3 x 2 x 5 18

WB-GM-1-1H

1 x 3 x 5 12

WB-GM-2-1H

2 x 3 x 5 24

WB-GM-3-1H

3 x 3 x 5 36

WB-AG-2

2 x 3 x 7 60

WB-AG-3

3 x 3 x 7 90

WB-AG-4

4 x 3 x 7 120
