CRS SERIES Vehicle Rinse Water Systems

September 15, 2010by Admin


CRS Series Rinse Water System
The CRS-Series systems are designed to further treat that water to remove soaps and some dissolved solids to provide water for rinsing the vehicles.

Why do I need the CRS Series Rinse Water System?

Most recycling systems can provide filtered wash-quality water. The CRS-Series systems are designed to further treat that water to remove soaps and some dissolved solids to provide water for rinsing the vehicles. This will reduce the amount of fresh water needed for the vehicle washing operation.

Top Features:

  • Rinse-Quality Water Filtration
  • Automatic Filter Operation
  • Retrofit To Existing Or New Recycling Systems

How does the CRS Series Rinse Water System Work?

The CRS-Series rinse water systems are designed to provide rinse-quality water on demand from an automated or manual vehicle wash operation. When needed, the CRS filter pump draws water from the recycled wash water storage tank and pushes it through a deep-bed polishing filter to the rinse process. A pressure switch and tank system assure constant output pressure. The filter automatically backwashes and requires minimum maintenance.

Optional Features:

  • Odor Control Ozonation System
  • Remote Monitoring
  • Filtration Pre-Treatment
  • System Enclosure
  • Water Storage Tank
  • U.L. Listing

Standard Features:

  • Totally automatic filtration
  • Deep-bed Carbon Polishing Filter
  • Compact Frame Mounted System
  • High Efficiency Pressurization Pump
  • Installs With Any Recycling System
  • Minimal Maintenance Required

CRS SERIES RINSE WATER SYSTEM SPECIFICATIONS

MODEL NUMBER CRS-5 CRS-10 CRS-35 CRS-75 CRS-110
FLOW RATE, GPM 5 10 35 75 110
REPRESSURIZATION
PUMP
½ HP 1.0 HP 2 HP 3 HP 5 HP
INPUT 1 ½” 1 ½” 2” 2” 3”
OUTPUT 1” 1” 1 ½” 2” 2”
PHYSICAL SIZE 34” X 66”
ELECTRICAL 120/208V
1 f
208/230/460V
3 f
120/208V
1 f
208/230/460V
3 f
120/208V
1 f
208/230/460V
3 f
208V
1 f
208/230/460V
3 f
208V
1 f
208/230/460V
3 f
FRAME Epoxy Coated Steel
FILTRATION Deep-bed Automated Carbon

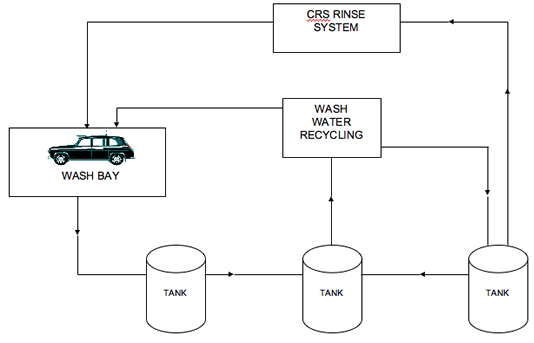

Typical Installation for a CRS Series Vehicle Rinse Water System

Typical Installation for a CRS Series Vehicle Rinse Water System
